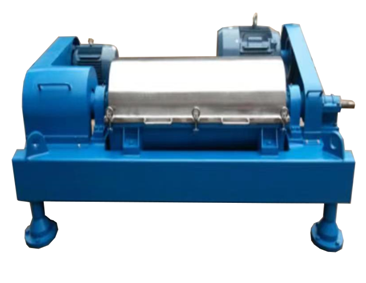

Jinze’s centrifuge series includes medium-speed, medium/high-speed, high-speed, and ultra-high-speed models, capable of meeting various processing needs. The equipment features advanced control systems that allow precise adjustment of operating parameters to adapt to different conditions and material characteristics, ensuring stable and efficient separation in both laboratory applications and industrial-scale production.
Model | LW600-1100N | LW550-1400N | JZ518 | JZ618 | JZ1000 |
Type | Medium speed | Medium/High speed | High speed | High speed | Ultra-high speed |
Max Processing Capacity(m3/h) | 70～80 | 90 | 60 | 50 | 110 |
Minimum Separation Point (μm) | 5～7 | 5～7 | 3～4 | 2～3 | ＜2 |
Speed(rpm) | 1800～2000 | 1600～3000 | 3200 | 3800 | 4600 |
Main Motor Power(KW) | 37 | 45 | 45 | 45 | 75 |
Auxiliary Motor Power(KW) | 11 | 15 | 7.5 | 7.5 | 22 |
Dimensions (mm) | 2470×1590×1500 | 2900×1840×1600 | 3000×1900×1500 | 2784×1702×1600 | 3500×2100×2500 |
Net Weight(kg) | 2700 | 3200 | 3500 | 3200 | 4800 |

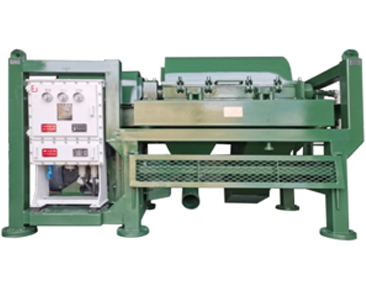

Jinze's centrifugal sand and mud separation unit utilizes the principle of centrifugal force to achieve efficient solid-liquid separation, quickly removing solid particles from the slurry and enhancing its reuse value. The integrated design combines sand removal and mud-water separation functions into a single unit, simplifying operational processes, reducing equipment footprint, and improving on-site operational efficiency. Additionally, key components are made of wear-resistant materials, ensuring stable operation even under harsh conditions, reducing maintenance frequency, and enhancing overall durability.
Model | Max Processing Capacity(m3/h) | Maximum Speed(rpm) | Main Motor Power(KW) | Pump Motor Power(kw) | Dimensions (mm) |
DCSN700BPZ | 200 | 2500 | 55 | 18 | 2900×1300×2100 |
